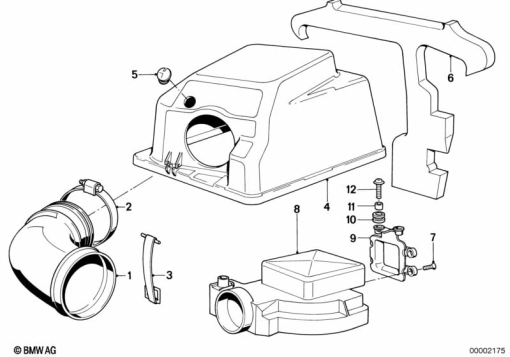

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 31 1 460 386 | HOSE ASSY | - | |
| 2 | 13 31 1 460 941 | HOSE CLAMP - D=66 | - | |
| 3 | 13 72 1 460 488 | SPRING | - | |
| 4 | 13 72 1 460 338 | AIR CLEANER HOUSING TOP | - | |
| 5 | 13 72 1 460 802 | BLIND PLUG | - | |
13 72 1 464 075 | BADGEAlternative for position 5 | - | ||
| 7 | 52 10 1 817 063 | COUNTERSUNK HEAD SCREW - M6X12 | - | |
| 8 | 13 62 1 460 447 | VOLUME AIR FLOW SENSOR | - | |
| 9 | 13 62 1 460 738 | HOLDER | - | |
| 10 | 07 14 7 267 586 | RUBBER GROMMET | - | |
| 11 | 31 42 1 236 241 | BUSH | - | |
| 12 | 13 72 1 460 964 | FILLISTER HEAD SCREW | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
