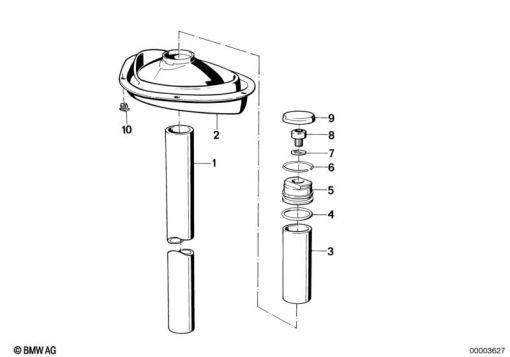

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 450 534 | STANCHION | 1 | |
| 2 | 31 42 1 234 908 | RUBBER BOOT | 1 | |
| 3 | 31 42 1 450 529 | SPACER TUBE | 1 | |
| 4 | 11 37 7 514 007 | O-RING - 30,2X3,0 | 1 | |
| 5 | 31 42 1 450 531 | SPRING RETAINER | 1 | |
| 6 | 31 42 1 450 543 | SNAP RING | 1 | |
| 7 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 8 | 72 11 8 108 712 | FILLISTER-HEAD SCREW - M10X12 | 1 | |
| 9 | 31 42 1 450 544 | COVER | 1 |
