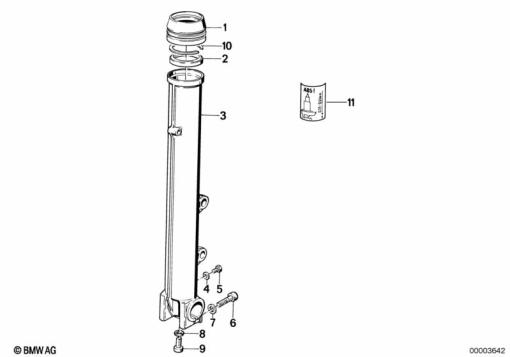

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 451 829 | 0.08 | - | |
| 2 | 31 42 1 451 478 | SHAFT SEAL - 41,4X51X6 | - | |
31 42 1 458 327 | SHIMAlternative for position 2 | - | ||
| 3 | 31 42 1 454 969 | INNER TUBE, BLACK, LEFT (from 09/85) | - | |
31 42 1 454 970 | INNER TUBE, BLACK, RIGHT (from 09/85)Alternative for position 3 | - | ||
31 42 1 450 541 | INNER TUBE IN POLISHED ALUMINUM, LEFT (to 09/85)Alternative for position 3 | - | ||
| 4 | 21 52 2 332 604 | GASKET RING - 6,2X9,9-AL | - | |
| 5 | 07 11 9 913 408 | HEX BOLT - M6X6 | - | |
| 6 | 07 11 9 918 859 | FILLISTER-HEAD SCREW - M8X35-8.8-ZN | - | |
| 7 | 07 11 9 931 697 | WASHER - 8,4 | - | |
| 8 | 07 11 9 963 041 | GASKET RING - A8X11,5-AL | - | |
| - | 07 11 9 904 826 | Washer | - | |
| 9 | 07 11 9 919 759 | FILLISTER-HEAD SCREW - M8X20 | - |
