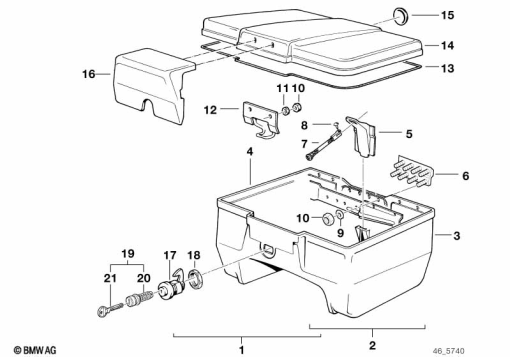

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 54 2 324 814 | TOP CASE WITHOUT LOCK CYLINDER - 22L | - | |
| 3 | 46 54 2 300 242 | BOTTOM PART | - | |
| 4 | 46 54 2 303 332 | REINFORCEMENT | - | |
| 5 | 46 54 2 300 439 | HOLDER | - | |
| 6 | 46 54 2 303 509 | HINGE | - | |
| 7 | 51 16 1 904 471 | JOINT LINK | - | |
| 8 | 46 54 2 300 454 | 46 54 2 300 454 | - | |
| 9 | 07 11 9 904 205 | WASHER - 9X4,3X0,8-200HV | - | |
07 11 9 931 637 | FLAT WASHERAlternative for position 9 | - | ||
| 10 | 07 12 9 906 098 | HEX NUT - M4-A2-70 | - | |
| 11 | 07 11 9 904 207 | WASHER - 4-200 HV-ZNS3 | - | |
| 12 | 46 54 2 300 244 | CATCH BRACKET | - | |
| 13 | 46 54 2 300 448 | GASKET | - | |
| 14 | 46 54 2 300 241 | COVER BLACK | - | |
| 15 | 51 14 2 303 355 | BADGE - BMW | - | |
| 16 | 46 54 2 300 243 | BACKREST - BLACK | - | |
46 54 2 322 591 | BACKREST - GRAYAlternative for position 16 | - | ||
| 17 | 51 16 2 303 024 | HOUSING | - | |
| 18 | 51 25 9 062 586 | HEX NUT - M33X1 | - | |
| 19 | 51 25 2 303 682 | LOCK CYLINDER WITH KEY | - | |
| 20 | 51 25 2 303 289 | LOCK (WITH KEY CODE) | - | |
| 21 | 51 25 1 233 554 | 0.01 | - | |
51 25 1 233 554S | REPLACEMENT KEY BLANKAlternative for position 21 | - |
