K100 (K589) | Frame, Fairing, Cases
COCKPIT TRIM PANEL

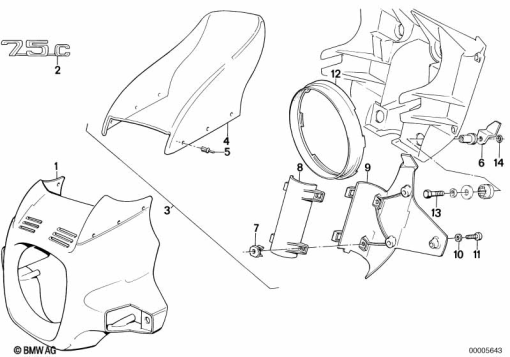

Diagram #46_0147 | 25 parts | 10 available in shop
100%
Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 0 026 095 | COVERING COCKPIT PRIME COATED | 1 | |
| 1 | 46 63 1 455 842 | COCKPIT TRIM PANEL - COLUMBIASILVER | 1 | |
| 1 | 46 63 1 456 700 | COCKPIT TRIM PANEL - ALASKABLUE | 1 | |
| 1 | 46 63 1 456 701 | COCKPIT TRIM PANEL - BAJARED | 1 | |
| 1 | 46 63 1 456 702 | COCKPIT TRIM PANEL - DOLOMITGRAY | 1 | |
| 1 | 46 63 1 456 890 | COCKPIT TRIM PANEL - DIAMANTGRAY | 1 | |
| 1 | 46 63 1 456 910 | COCKPIT TRIM PANEL - RED | 1 | |
| 1 | 46 63 1 456 939 | COCKPIT TRIM PANEL - MADISON | 1 | |
| 1 | 46 63 1 456 946 | COCKPIT TRIM PANEL - POLARIS | 1 | |
| 3 | 46 63 2 303 518 | SET: INSTALLING COCKPIT TRIM - KLAR | 1 | |
| 4 | 46 63 1 456 020 | SLIPSTREAM DEFLECTOR - KLAR | 1 | |
| 4 | 46 63 1 456 020 | SLIPSTREAM DEFLECTOR - KLAR | 1 | |
| 5 | 51 16 1 881 149 | EXPANDING RIVET | 1 | |
| 6 | 46 63 2 303 411 | STOPPER LEFT | 1 | |
| 6 | 46 63 2 303 412 | STOPPER RIGHT | 1 | |
| 7 | 07 12 9 926 512 | CAGE NUT - M6 | 1 | |
| 8 | 46 63 2 303 146 | HOLDER | 1 | |
| 9 | 46 63 2 303 117 | COVERING LEFT | 1 | |
| 9 | 46 63 2 303 118 | COVERING RIGHT | 1 | |
| 10 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 11 | 07 11 9 920 069 | FILLISTER-HEAD SCREW - M6X12 | 1 | |
| 12 | 63 12 2 303 338 | RING | 1 | |
| 13 | 07 11 9 902 998 | HEX BOLT - M6X35-8.8-ZNS3 | 1 | |
| 14 | 46 63 2 303 421 | RING | 1 | |
| 13 | 07 11 9 901 189 | bolt 6x1.0x35 | 1 |
