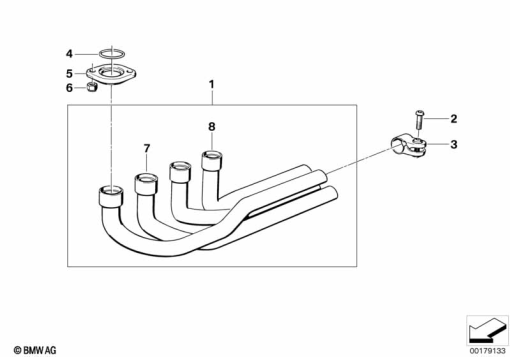

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 11 7 719 695 | SET: EXHAUST MANIFOLD | - | |
| 2 | 18 21 1 454 136 | SCREW | - | |
| 3 | 18 21 1 451 315 | CLAMP - 1+3 | - | |
18 21 1 451 359 | CLAMP - 2+4Alternative for position 3 | - | ||
| 4 | 11 62 7 662 083 | GASKET RING - C32X40 | - | |
| 5 | 11 62 1 460 087 | PRESSURE PLATE | - | |
| 6 | 11 62 1 744 323 | HEX NUT - M8 SW12 | - | |
| 7 | 18 11 1 451 385 | EXHAUST PIPE - 2 | - | |
| 8 | 18 11 1 451 387 | EXHAUST PIPE - 4 | - |
