Diagram #71_0134 | 32 parts

100%

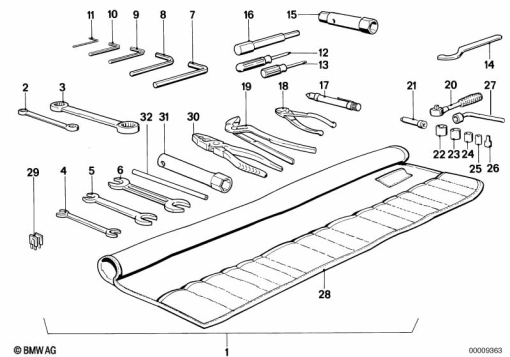

K100 (K589) CAR TOOL exploded view parts diagram

Parts List (32)

#	Part Number	Description	Qty
1	71 11 2 300 100	TOOL KIT	-
	71 11 9 057 540	SET: TOOL KITAlternative for position 1	-
2	71 11 1 237 847	RING SPANNER - 10X12	-
3	71 11 2 300 105	RING SPANNER - 17X19	-
4	71 11 2 300 069	OPEN END SPANNER - 10X13	-
5	71 11 2 300 104	OPEN END SPANNER - 11X13	-
6	71 11 1 237 845	DOUBLE OPEN-END WRENCH - 17X19	-
7	71 11 1 237 849	INNER HEX SPANNER - BLACK8	-
8	71 11 1 237 850	INNER HEX SPANNER - BLACK6	-
9	71 11 1 237 851	INNER HEX SPANNER - BLACK5	-
10	71 11 1 237 852	INNER HEX SPANNER - BLACK4	-
11	71 11 1 237 853	INNER HEX SPANNER - BLACK3	-
12	71 11 1 179 629	SCREWDRIVER	-
13	71 11 9 090 147	SCREWDRIVER	-
14	71 11 2 300 101	HOOK WRENCH	-
15	71 11 2 300 102	SPARK PLUG WRENCH - BLACK 17/18	-
16	71 11 2 300 106	EXTENSION	-
17	71 11 1 237 860	TIRE PRESSURE GAGE	-
18	71 11 1 237 861	DIAGONAL CUTTER	-
19	71 11 1 179 522	WATER PUMP PLIERS	-
20	71 11 1 237 864	RATCHET	-
21	71 11 1 237 865	EXTENSION	-
22	71 11 1 237 866	SOCKET WRENCH - 13	-
24	71 11 1 237 868	SOCKET WRENCH - 10	-
25	71 11 2 300 068	SOCKET WRENCH - 8	-
26	71 11 2 300 108	INNER HEX SPANNER - 5	-
27	71 11 2 300 107	SOCKET WRENCH - 17	-
28	71 11 2 300 109	TOOL BAG	-
29	61 13 1 372 524	FUSE BROWN - 7,5A	-
	61 13 1 372 526	FUSE BLUE - 15AAlternative for position 29	-
30	71 11 1 103 092	COMBINATION PLIERS	-
32	71 11 2 301 357	0.15	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
