K100 (K589) | Engine

SHORT ENGINE/CRANK CASE WITH PISTONS

Diagram #11_4685 | 2 parts

100%

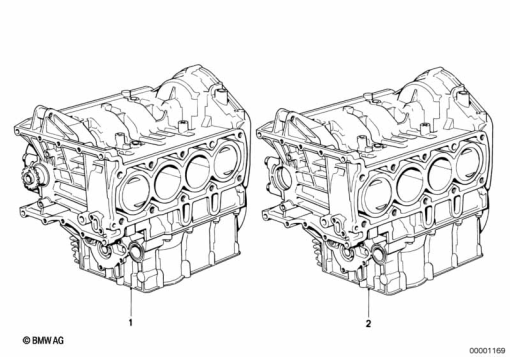

K100 (K589) SHORT ENGINE/CRANK CASE WITH PISTONS exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
11 00 1 461 515
SHORT ENGINE1
2
11 00 1 461 516
ENGINE BLOCK WITH PISTON1
