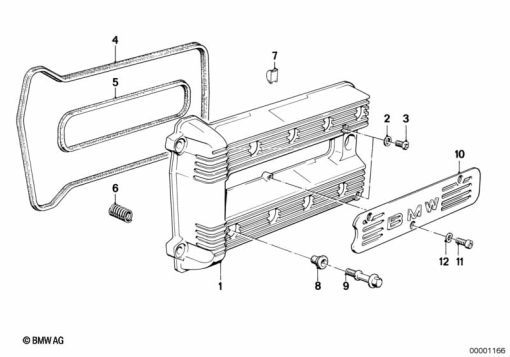

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 1 460 268 | CYLINDER HEAD COVER | - | |
| 2 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | - | |
| 3 | 07 11 9 904 393 | SCREW PLUG - M10X1-ST-ZNS3 | - | |
| 4 | 11 12 1 460 463 | GASKET | - | |
| 5 | 11 12 1 460 464 | GASKET | - | |
| 6 | 11 12 1 460 811 | CONTACT SPRING | - | |
| 7 | 11 12 1 460 368 | PLUG | - | |
| 8 | 11 14 1 460 934 | BUSH | - | |
| 9 | 11 14 1 460 331 | SCREW | - | |
| 10 | 11 12 1 460 794 | COVER | - | |
| 11 | 07 11 9 919 800 | FILLISTER-HEAD SCREW - M6X12 ZN/SW | - | |
| 12 | 07 11 9 932 096 | WAVE WASHER - A6 (to 05/90) | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 12 | - |
