K100 (K589) | Engine Electrics

IGNITION SYSTEM

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #12_0753 | 36 parts

100%

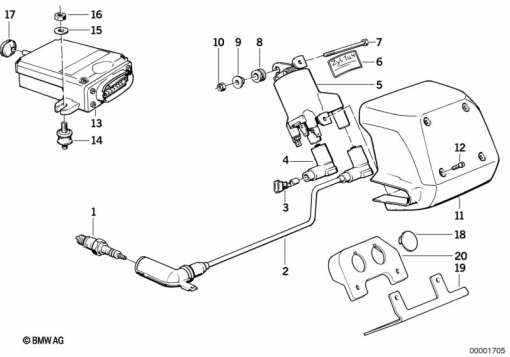

K100 (K589) IGNITION SYSTEM exploded view parts diagram

Parts List (36)

#	Part Number	Description	Qty
1	12 12 9 062 217	SPARK PLUG - X5DC	-
2	12 12 1 459 183	IGNITION WIRE - 1	-
	12 12 2 305 041	IGNITION WIRE 1 - BERUAlternative for position 2	-
-	12 12 1 289 844	SUPPRESSING SOCKET	-
-	12 12 1 705 656	CIRCULAR CONNECTOR	-
2	12 12 1 459 184	IGNITION WIRE - 2	-
	12 12 2 305 042	IGNITION WIRE 2 - BERUAlternative for position 2	-
-	12 12 1 289 844	SUPPRESSING SOCKET	-
-	12 12 1 705 656	CIRCULAR CONNECTOR	-
2	12 12 1 459 185	IGNITION WIRE - 3	-
	12 12 2 305 043	IGNITION WIRE 3 - BERUAlternative for position 2	-
-	12 12 1 289 844	SUPPRESSING SOCKET	-
-	12 12 1 705 656	CIRCULAR CONNECTOR	-
2	12 12 1 459 186	IGNITION WIRE - 4	-
	12 12 2 305 044	IGNITION WIRE 4 - BERUAlternative for position 2	-
-	12 12 1 289 844	SUPPRESSING SOCKET	-
-	12 12 1 705 656	CIRCULAR CONNECTOR	-
3	12 12 1 705 656	CIRCULAR CONNECTOR	-
4	12 12 1 289 844	SUPPRESSING SOCKET	-
5	12 13 1 459 513	IGNITION COIL	-
6	71 21 2 305 187	LABEL - ZYL.1+4	-
	71 21 2 305 188	LABEL - ZYL.2+3Alternative for position 6	-
7	07 11 9 912 364	HEX BOLT - M6X85	-
8	31 42 1 235 615	RUBBER GROMMET	-
9	63 12 7 727 887	COLLAR BUSH - 18X6,1X8-ZNNIV	-
10	07 12 9 922 705	SELF-LOCKING HEX NUT - M6-10 ZN (to 10/91)	-
	07 14 7 575 163	SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 10	-
	07 14 7 575 163	SELF-LOCKING HEX NUTAlternative for position 10	-
11	61 13 2 300 469	COVER	-
12	07 11 9 919 751	FILLISTER HEAD WITH WASHER - M4X10-Z1 (to 07/87)	-
	07 11 9 907 582	FILLISTER HEAD SCREW - M5X12-Z1 (from 07/87)Alternative for position 12	-
13	12 14 1 459 018	CONTROL UNIT	-
14	61 21 1 243 530	RUBBER MOUNTING	-
15	07 11 9 904 202	WASHER - A6,4-ZNNIV SI	-
16	07 11 9 905 543	HEX NUT - M6-8-ZNNIV SI	-
17	12 14 1 459 514	RUBBER GROMMET	-
