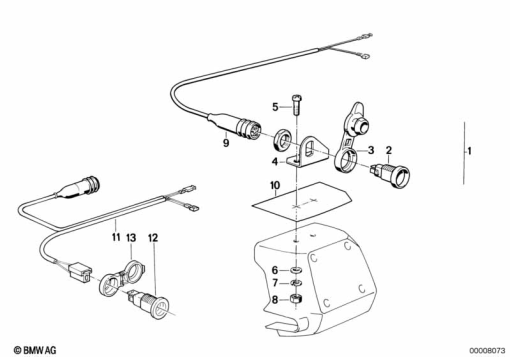

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 300 274 | SET: RETROFIT KIT, SOCKET | - | |
| 2 | 61 13 1 379 719 | PLUG-IN SOCKET | - | |
| 3 | 61 12 2 303 574 | COVER | - | |
| 4 | 61 13 2 315 421 | HOLDER | - | |
| 5 | 07 11 9 907 639 | FILLISTER HEAD SCREW - M5X10 | - | |
| 6 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
| 7 | 07 11 9 933 060 | SPRING WASHER - B5 | - | |
| 8 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| 9 | 61 12 2 300 273 | WIRING PLUG TERMINAL | - | |
| 10 | 61 13 2 300 275 | TEMPLATE | - |
