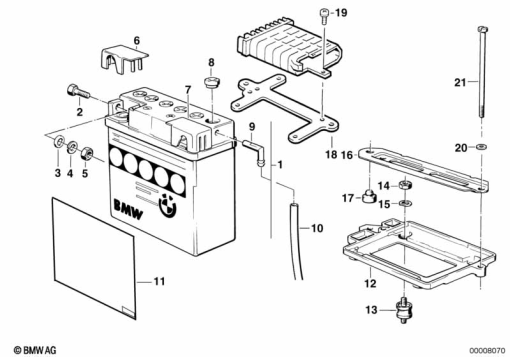

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53030 | YUASA BATTERY | - | |
61 21 1 459 650 | EMPTY BATTERY - 12V 25AHAlternative for position 1 | - | ||
61 21 9 056 972 | BATTERY ACID PARCEL (6 BOTTLES) - 25AH-30AHAlternative for position 1 | - | ||
| 2 | 61 21 1 459 655 | HEX BOLT - M6X20 | - | |
| 3 | 61 21 1 459 657 | WASHER - A6,4 | - | |
| 4 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 5 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 7 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
| 8 | 61 21 1 459 106 | BLIND PLUG | - | |
| 9 | 61 21 1 459 247 | HOSE CONNECTOR (to 02/87) | - | |
61 21 1 459 743 | HOSE CONNECTOR (from 02/87)Alternative for position 9 | - | ||
| 10 | 61 21 2 306 299 | HOSE - 1000 MM | - | |
| 12 | 61 21 1 459 055 | BATTERY HOLD DOWN | - | |
| 13 | 61 21 1 233 028 | RUBBER MOUNTING | - | |
FRA33028 | RUB. MNT. BAT BOX 8-15-8MMAlternative for position 13 | - | ||
| 14 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 14 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 14 | - | ||
| 15 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 16 | 61 21 1 459 044 | CHAIN TENSIONER | - | |
| 17 | 61 21 1 459 087 | BUMP STOP | - | |
| 21 | 61 21 1 459 734 | SCREW - M6X178 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
