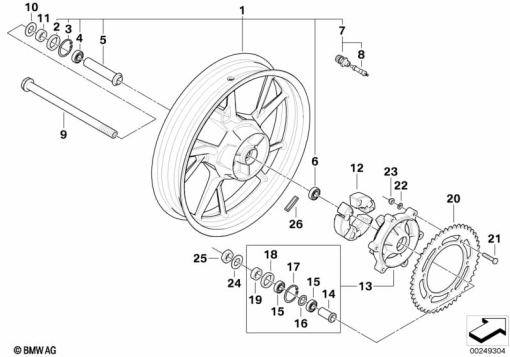

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 7 728 610 | CAST WHEEL, REAR, MAGNESIUM MATTE - 3,5X17 | - | |
| 2 | 36 31 8 561 714 | SHAFT SEAL - AS30X40X7 | - | |
| 3 | 07 11 9 906 782 | LOCK RING - 40X1,75-ZNS3 | - | |
| 4 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 5 | 36 31 2 345 809 | SPACER SLEEVE, INTERIOR | - | |
| 6 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 7 | 36 31 7 693 061 | VALVE | - | |
| 8 | 36 31 7 685 555 | VALVE - L=16MM | - | |
| 9 | 36 31 7 650 587 | AXLE SHAFT REAR | - | |
| 10 | 36 31 7 650 590 | WASHER - 17,5X34X4-ZNS3 | - | |
| 11 | 36 31 2 345 814 | SPACER SLEEVE, EXTERIOR | - | |
| 12 | 27 71 2 345 789 | ABSORBER | - | |
| 13 | 27 71 8 522 563 | SPROCKET HUB | - | |
| 14 | 27 71 2 345 812 | SPACER SLEEVE, INTERIOR | - | |
| 15 | 33 81 8 543 930 | GROOVED BALL BEARING - 6204-2RSH | - | |
| 16 | 27 71 7 655 483 | STOPPER | - | |
| 17 | 07 11 9 906 808 | LOCK RING - 47X1,75 | - | |
| 18 | 36 31 8 561 714 | SHAFT SEAL - AS30X40X7 | - | |
| 19 | 27 71 2 345 813 | SPACER SLEEVE, EXTERIOR | - | |
| 20 | 27 71 2 345 857 | CHAIN PINION - Z=47 | - | |
| 21 | 07 11 9 902 910 | HEX BOLT - M8X40-8.8-ZNS3 | - | |
| 22 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | - | |
| 23 | 07 12 9 906 196 | SELF-LOCKING HEX NUT - M8-8-ZNNI SI | - | |
| 24 | 36 31 7 650 590 | WASHER - 17,5X34X4-ZNS3 | - | |
| 25 | 07 12 9 906 784 | HEX NUT - M16X1,5 | - | |
| 26 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 26 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 26 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 26 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 26 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 26 | - |
