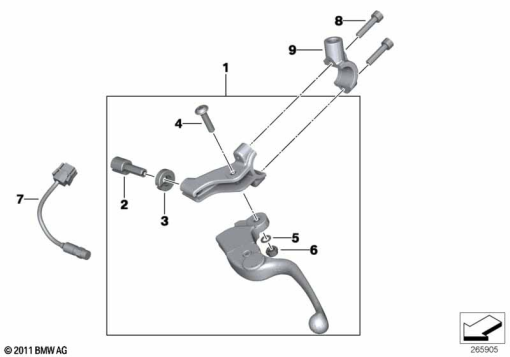

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 7 688 439 | CLUTCH LEVER, ADJUSTABLE | - | |
| 2 | 32 72 7 678 100 | ADJUSTMENT SCREW, BOWDEN CABLE | - | |
| 3 | 32 72 7 678 101 | COUNTER NUT | - | |
| 4 | 32 72 7 673 989 | COUNTERSUNK HEAD SCREW - M5X30 | - | |
| 5 | 32 72 7 680 376 | WASHER - 5-140 | - | |
| 6 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 7 | 61 31 7 650 075 | CLUTCH SWITCH | - | |
| 8 | 07 12 9 903 808 | ISA SCREW - M6X25 | - | |
| 9 | 32 72 2 345 420 | PIPE CLAMP LEFT | - |
