G650GS 10-15 (R131) | Seat

DUALSEAT LOCKING MECHANISM

Diagram #52_2671 | 3 parts

100%

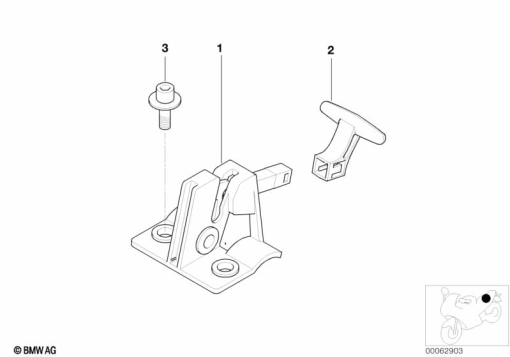

G650GS 10-15 (R131) DUALSEAT LOCKING MECHANISM exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
51 25 7 651 917
DUALSEAT LOCKING MECHANISM1
2
51 25 7 650 082
OPERATING LEVER1
3
07 12 9 906 804
ISA SCREW - M6X16-U2-8.81
