G650GS 10-15 (R131) | Pedals

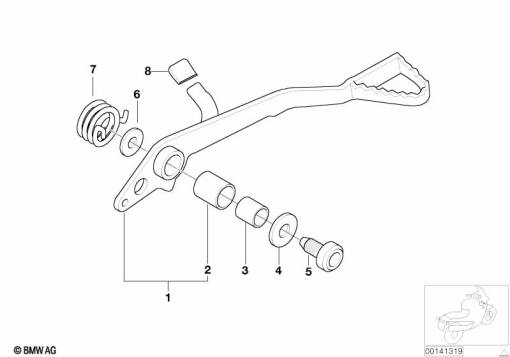

BRAKE PEDAL
Diagram #35_0264 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 651 457 | BRAKE PEDAL | 1 | |
| 2 | 35 21 1 450 231 | BUSHING | 1 | |
| 3 | 35 21 2 345 837 | BUSHING | 1 | |
| 4 | 07 11 9 906 215 | WASHER - 8-200 HV-SW | 1 | |
| 5 | 35 21 7 654 249 | OVAL-HEAD MACHINE SCREW, BLACK - M8X55 | 1 | |
| 6 | 07 11 9 904 164 | WASHER - 8,4X24X2-ZNS3 | 1 | |
| 7 | 35 21 2 311 670 | RETAINER SPRING | 1 | |
| 8 | 35 21 7 663 483 | SHRINKING HOSE - LG=20MM | 1 |
