G650GS 10-15 (R131) | Navigation & Alarm
ALARM SYSTEMS 5.1

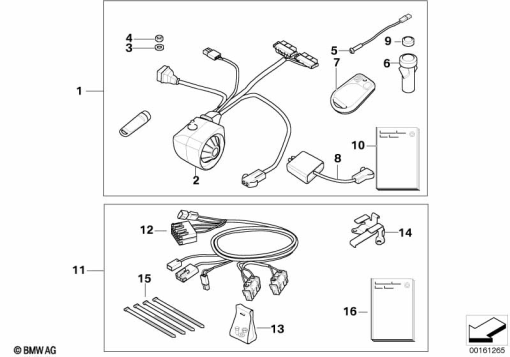

Diagram #65_1567 | 15 parts
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 75 7 688 727 | SET: ALARM SYSTEMS - 5.1 | - | |
| 2 | 65 75 7 684 642 | CONTROL UNIT | - | |
| 3 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 3 | - | ||
| 4 | 07 12 9 903 343 | HEX NUT - M6-A2-70 | - | |
| 5 | 65 75 7 655 905 | LED DWA ALARM SYSTEM | - | |
| 6 | 65 75 7 659 053 | LED FRAME - DWA | - | |
| 7 | 65 75 1 696 869 | REMOTE CONTROL - 433MHZ | - | |
| 8 | 65 75 7 655 901 | MOTION SENSOR | - | |
| 10 | 01 29 7 685 213 | OPERATING INSTRUCTIONS, ALARM SYSTEMS - 5.1 | - | |
| 11 | 65 75 7 688 728 | SET: THEFT ALARM, MOUNTING PARTS | - | |
| 12 | 61 12 7 686 894 | WIRING HARNESS, ANTITHEFT ALARM SYSTEM | - | |
| 13 | 71 60 7 653 868 | SET: FASTENING SET | - | |
| 14 | 71 60 7 653 871 | BRACKET | - | |
| - | 46 54 7 684 770 | ISA SCREW - M6X35 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
