G650GS 10-15 (R131) | Instruments Dash

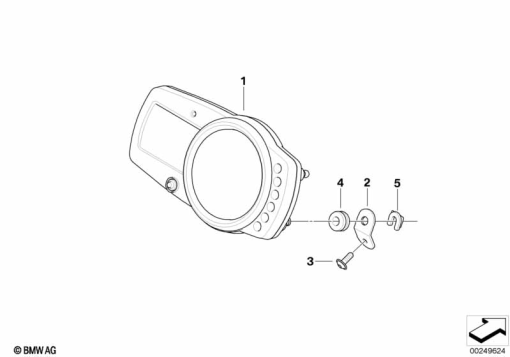

INSTRUMENT CLUSTER
Diagram #62_0542 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 8 526 529 | INSTRUMENT CLUSTER - KM/H | 1 | |
| 1 | 62 11 8 526 530 | INSTRUMENT CLUSTER - MPH | 1 | |
| 2 | 62 11 8 521 670 | BRACKET F INSTRUMENT CLUSTER | 1 | |
| 3 | 46 63 7 657 650 | FILLISTER HEAD SCREW - M5X14 | 1 | |
| 4 | 46 63 1 233 200 | RUBBER GROMMET | 1 | |
| 5 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | 1 |
