G650GS 10-15 (R131) | Fuel Supply
ACTIVATED CHARCOAL FILTER/MOUNTING PARTS

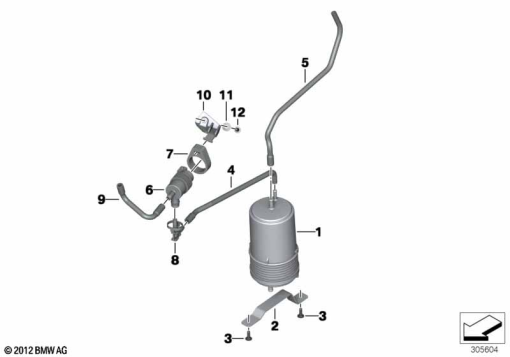

Diagram #16_0800 | 14 parts
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 2 345 095 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 16 11 7 724 322 | BRACKET ACTIVATED CARBON CONTAINER | - | |
| 3 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 4 | 16 13 7 652 536 | FUEL HOSE - D=4,7MM (to 04/13) | - | |
16 13 8 535 332 | FUEL HOSE - D=4,5MM (from 04/13)Alternative for position 4 | - | ||
| 5 | 16 13 7 652 535 | FUEL HOSE - D=4,7MM | - | |
| 6 | 13 90 1 433 603 | FUEL TANK BREATHER VALVE | - | |
| 7 | 13 90 1 433 601 | BRACKET VENTILATION VALVE | - | |
| 8 | 16 13 1 183 490 | QUICK-RELEASE COUPLING | - | |
| 9 | 16 13 7 714 445 | FUEL HOSE (to 04/13) | - | |
16 13 8 535 333 | FUEL HOSE - D=4,5MM (from 04/13)Alternative for position 9 | - | ||
| 10 | 16 13 8 535 089 | BRACKET VENTILATION VALVE (from 04/13) | - | |
| 11 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 12 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | - |
