G650GS 10-15 (R131) | Frame, Fairing, Cases

WINDSHIELD

Diagram #46_1352 | 4 parts

100%

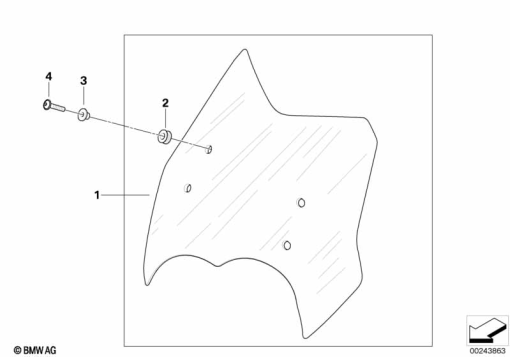

G650GS 10-15 (R131) WINDSHIELD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 7 723 692
SET: SET, WINDSHIELD, LOW1
2
46 63 8 555 101
RUBBER GROMMET1
3
46 63 7 724 481
FLANGE SLEEVE, STEEL - L=7MM1
4
63 13 7 655 661
OVAL HEAD SCREW - M5X251
