G650GS 10-15 (R131) | Exhaust System

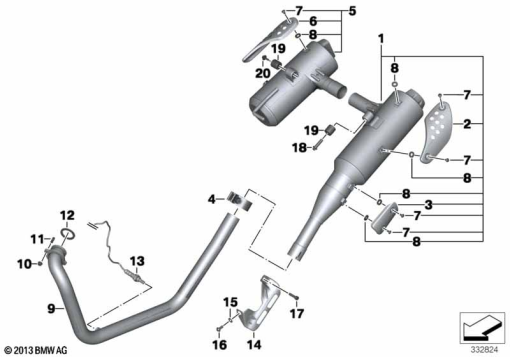

EXHAUST SYSTEM PARTS WITH MOUNTS
Diagram #18_0407 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 7 728 065 | CATALYZER/REAR SILENCER | - | |
| 2 | 18 12 7 728 047 | COVERING LEFT - BLACK | - | |
| 3 | 18 12 7 728 046 | COVER - BLACK | - | |
| 4 | 18 12 7 684 222 | CIRCLIP END MUFFLER | - | |
| 5 | 18 12 7 728 066 | REAR MUFFLER | - | |
| 6 | 18 12 7 728 048 | COVERING RIGHT - BLACK | - | |
| 7 | 18 12 7 661 721 | FLANGE SCREW - M6X10 | - | |
| 8 | 18 12 7 661 722 | INSULATING WASHER - 6X20X3 | - | |
| 9 | 18 11 7 678 686 | EXHAUST MANIFOLD | - | |
| 10 | 18 21 1 341 324 | CAP NUT - M8-8-CR | - | |
| 11 | 11 12 7 706 516 | STUD BOLT - M8X23/20 | - | |
| 12 | 18 11 2 343 587 | EXHAUST SEAL | - | |
| 13 | 11 78 7 685 320 | OXYGEN SENSOR - NGK 6 OHM | - | |
| 14 | 46 53 7 657 431 | PROTECTIVE COVER | - | |
| 15 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 16 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | - | |
| 17 | 36 31 7 709 543 | OVAL HEAD SCREW - M8X25-10.9 ZNS3 | - | |
| 19 | 18 21 1 342 283 | RUBBER MOUNTING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
