Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 11 7 721 818 | CAR TOOL | - | |
| 2 | 06 32 7 659 019 | DOUBLE OPEN-END WRENCH - 14X19 | - | |
| 3 | 07 11 9 999 100 | DOUBLE OPEN-END WRENCH - 17X19 (to 06/12) | - | |
07 11 9 908 044 | DOUBLE OPEN-END WRENCH - 17X19Alternative for position 3 | - | ||
71 11 7 665 489 | OPEN-ENDED WRENCH - BLACK24Alternative for position 3 | - | ||
07 11 9 908 044 | DOUBLE OPEN-END WRENCH - 17X19 (from 06/12)Alternative for position 3 | - | ||
| 4 | 71 11 2 347 278 | TORX WRENCH - T25 | - | |
| 6 | 71 11 7 692 709 | TOOL BAG | - | |
| 7 | 06 32 7 659 061 | SPARK PLUG WRENCH | - | |
| 8 | 06 32 7 659 020 | SCREWDRIVER F PHILLIPS SCREW | - | |
| 9 | 71 11 1 179 629 | SCREWDRIVER | - | |
| 10 | 61 13 6 917 400 | FUSE MINI, ROSA - 4A | - | |
61 13 6 917 402 | FUSE MINI, BROWN - 7,5AAlternative for position 10 | - | ||
61 13 6 917 403 | FUSE MINI, RED - 10AAlternative for position 10 | - | ||
61 13 6 917 404 | FUSE MINI, BLUE - 15AAlternative for position 10 | - | ||
| 11 | 61 13 7 668 722 | GRIPPER CLIP FOR MINIATURE FUSES | - |

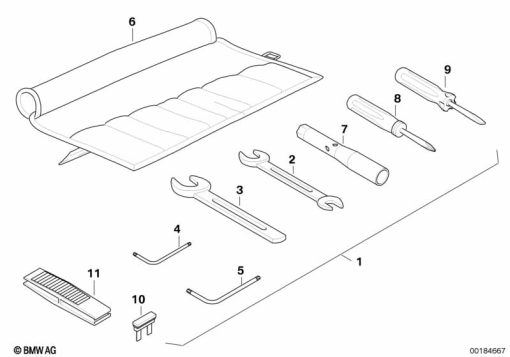

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
