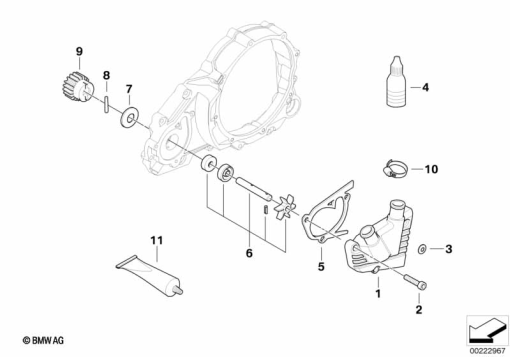

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 51 7 727 868 | HOUSING, WATER PUMP, ANTHRACITE | 1 | |
| 2 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | 1 | |
| 3 | 11 14 2 343 240 | GASKET RING - A6X10 | 1 | |
| 4 | 83 19 2 210 339 | THREAD LOCK, MEDIUM-STRENGTH - 10ML | 1 | |
| 5 | 11 51 7 700 382 | GASKET | 1 | |
| 6 | 11 51 7 700 414 | SET: SET, WATER PUMP SHAFT | 1 | |
| 7 | 11 41 7 700 131 | STOP DISK - 10,1X17X1 | 1 | |
| 8 | 11 51 7 700 381 | ROLL PIN - 4X19,8 | 1 | |
| 9 | 11 51 7 700 216 | PINION - 15 | 1 | |
| 10 | 11 51 7 652 922 | HOSE CLAMP - D=24,5MM | 1 | |
| 11 | 11 00 7 660 832 | LUBRICANT MOLYKOTE 111 - 100G | 1 |
