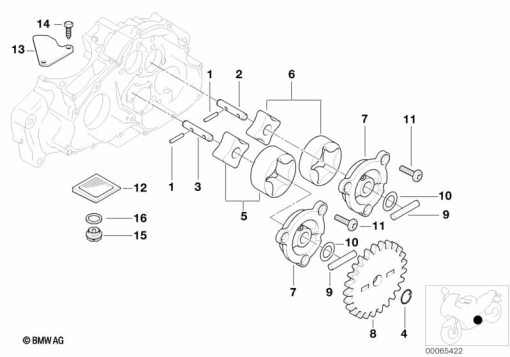

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 7 700 375 | ROLL PIN - 4X15,8 | - | |
| 2 | 11 41 7 700 221 | SHAFT, PRESSURE SIDE - L=52MM | - | |
| 3 | 11 41 7 700 220 | SHAFT, SUCTION SIDE - L=55MM | - | |
| 4 | 11 41 2 343 458 | LOCK RING | - | |
| 5 | 11 41 7 706 730 | SET: SET ROTOR, SUCTION SIDE | - | |
| 6 | 11 41 7 713 655 | SET: SET ROTOR, PRESSURE SIDE | - | |
| 7 | 11 41 7 700 130 | OIL PUMP COVER | - | |
| 8 | 11 41 7 700 132 | GEAR WHEEL - 25 | - | |
| 9 | 11 41 7 700 376 | ROLL PIN - 4X29,8 | - | |
| 10 | 11 41 7 700 131 | STOP DISK - 10,1X17X1 | - | |
| 11 | 11 41 7 654 012 | TORX BOLT - M5X16 | - | |
| 12 | 11 41 7 700 134 | OIL STRAINER | - | |
| 13 | 11 41 7 700 378 | STRAINER PLATE | - | |
| 14 | 11 41 2 343 116 | SCREW SELF-TAPPING - M5X16 | - | |
| 15 | 11 13 7 700 094 | SCREW PLUG, MAGNETIC - M24X2 | - | |
| 16 | 11 41 7 652 949 | GASKET RING - 24X30X1,5 | - |
