G650GS 10-15 (R131) | Engine Electrics

IGNITION SYSTEM

Diagram #12_1654 | 3 parts

100%

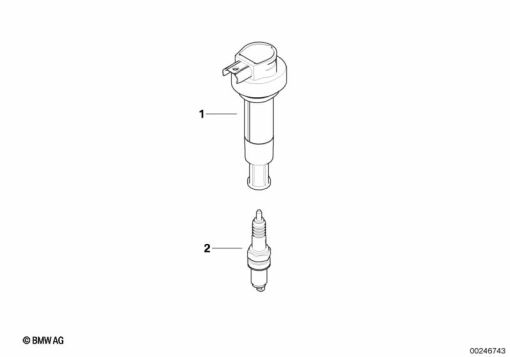

G650GS 10-15 (R131) IGNITION SYSTEM exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
12 13 7 715 848
IGNITION COIL, SECON PLUG, RF-SUPPRESSED - 1 KOHM1
1
12 13 7 715 849
IGNITION COIL, MAIN PLUG, RF-SUPPRESSED - 1 KOHM1
2
12 12 7 664 404
SPARK PLUG - 12 NGK DR8EB1
