G650GS 10-15 (R131) | Electrical System

PLUG-IN CONNECTION BRACKET

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_6469 | 3 parts

100%

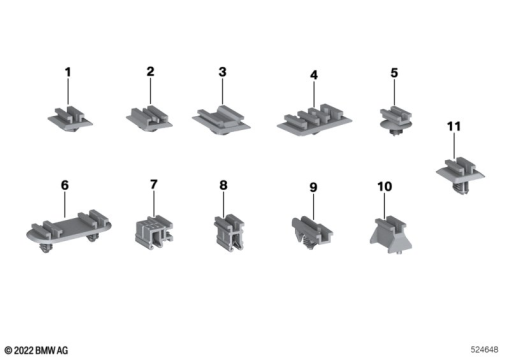

G650GS 10-15 (R131) PLUG-IN CONNECTION BRACKET exploded view parts diagram

Parts List (3)

#	Part Number	Description	Qty
1	61 13 8 365 536	BRACKET, PLUG CONNECTION GRAY	-
3	61 13 1 382 541	BRACKET, PLUG CONNECTION GRAY	-
10	61 13 7 651 912	PLUG-IN CONNECTION BRACKET	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
