G650GS 10-15 (R131) | Electrical System

HORN

Diagram #61_4784 | 5 parts

100%

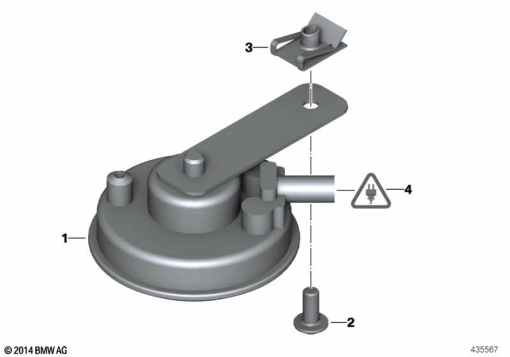

G650GS 10-15 (R131) HORN exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
61 33 8 414 384
HORN - 45°1
2
07 12 9 906 138
ISA SCREW - M8X25-U1-8.81
3
61 33 2 346 555
C-CLIP NUT - M8-ZNS31
4
61 13 2 359 999
SET: REP. KIT FOR SOCKET HOUSING - 2 POL.1
–
61 33 8 559 625
HORN1
