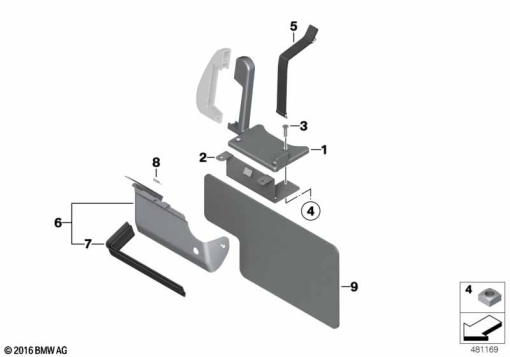

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 2 343 578 | BATTERY TRAY | 1 | |
| 2 | 13 71 2 343 567 | BATTERY HOLD DOWN | 1 | |
| 3 | 07 11 9 900 892 | COUNTERSUNK HEAD SCREW - M6X25-8.8-ZNS | 1 | |
| 4 | 07 12 9 904 896 | WELDING NUT - M6 | 1 | |
| 5 | 61 21 2 346 549 | TENSION STRAP | 1 | |
| 6 | 61 21 7 650 108 | HEAT RESISTANT PLATE - BLACK | 1 | |
| 7 | 61 21 7 650 107 | GASKET | 1 | |
| 8 | 61 13 7 687 319 | HOSE CLAMP | 1 | |
| 9 | 61 21 8 524 984 | HEAT PROTECTION MAT SMALL | 1 |
