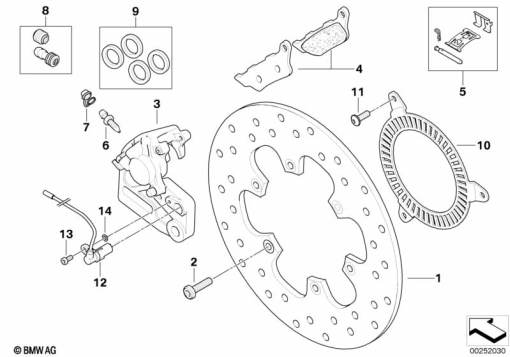

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 345 314 | REAR BRAKE DISC - D=240MM | - | |
| 2 | 36 31 7 671 267 | FILLISTER-HEAD SCREW - M6X20-8.8-MK | - | |
| 3 | 34 21 8 530 065 | BRAKE CALIPER WITHOUT PADS, REAR | - | |
| 4 | 34 21 7 107 625 | BRAKE PADS KIT, REAR | - | |
34 21 7 722 884 | SET: BRAKE PADS KIT, REAR (to 12/15)Alternative for position 4 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 4 | - | ||
34 21 7 107 625 | SET: BRAKE PADS KIT, REARAlternative for position 4 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 4 | - | ||
| 5 | 34 21 8 529 920 | SET: KIT, ATTACHMENT PARTS, BRAKE LINING | - | |
| 6 | 34 21 2 335 975 | VENT SCREW | - | |
| 7 | 34 21 1 236 794 | DUST CAP | - | |
| 8 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 9 | 34 21 7 651 957 | SET: SET OF BRAKE CALIPER PISTON SEALS | - | |
| 10 | 34 51 2 345 810 | SENSOR RING, REAR | - | |
| 11 | 07 11 9 906 809 | COUNTERSUNK SCREW - M5X10-10.9 ZNS3 | - | |
| 12 | 34 52 7 687 528 | WHEELSPEED SENSOR | - | |
| 13 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 14 | 34 52 7 657 910 | REINFORCEMENT | - |
