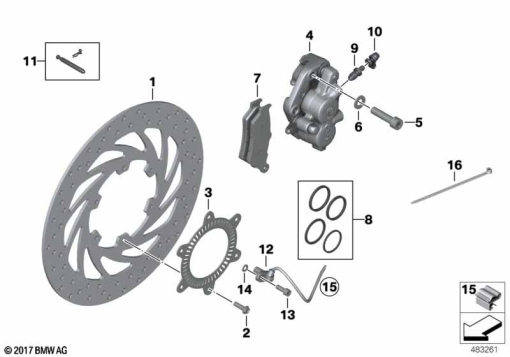

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 713 131 | BRAKE ROTOR, FRONT - D=300/5,00 | - | |
34 11 2 345 824 | BRAKE ROTOR, FRONT - D=300MMAlternative for position 1 | - | ||
| 2 | 34 11 8 531 699 | HEXAGON SCREW WITH COATING - M6X20-10.9 | - | |
| 3 | 34 51 2 345 822 | SENSOR RING ABS, FRONT | - | |
| 4 | 34 11 7 716 715 | CALIPER WITH OUT BRAKE PADS LEFT | - | |
| 5 | 07 11 9 906 710 | ISA SCREW | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 34 11 7 705 216 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 7 | - | ||
| 8 | 34 11 7 651 956 | SET: OF SEALS FOR BRAKE PISTON - D=30MM/32MM | - | |
| 9 | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 10 | 34 21 1 236 794 | DUST CAP | - | |
| 11 | 34 11 7 651 954 | SET: SET OF MOUNTING PARTS, LEFT | - | |
| 12 | 34 52 7 687 528 | WHEELSPEED SENSOR | - | |
| 13 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 14 | 34 52 7 657 910 | REINFORCEMENT | - | |
| 15 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 16 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
