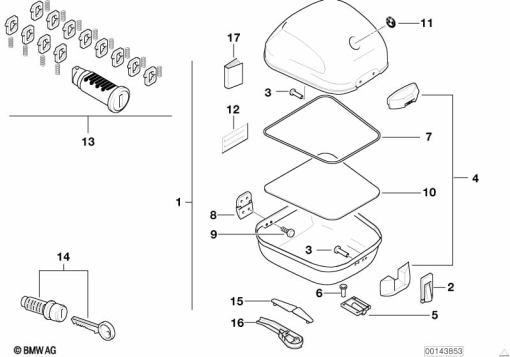

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 710 982 | TOP CASE WITHOUT LOCK CYLINDER - MU/31L | - | |
| 2 | 71 60 7 654 346 | CAP LOCK WITHOUT CYLINDER | - | |
| 3 | 71 60 2 337 170 | SET: SET OF FITTINGS FOR COVER LOCK | - | |
| 4 | 71 60 7 714 358 | SET: SET, COVER FOR TOP/BOTTOM | - | |
| 5 | 71 60 7 654 347 | IMMOBILIZING LOCK WITHOUT CYLINDER | - | |
| 6 | 71 60 2 337 229 | SET: SET OF RIVETS FOR IMMO. LOCK A3.2X10 | - | |
| 7 | 71 60 7 714 344 | GASKET | - | |
| 8 | 71 60 2 337 168 | HINGE | - | |
| 9 | 71 60 2 337 172 | SET: SCREW | - | |
| 10 | 71 60 2 337 205 | COVERING INNER | - | |
| 11 | 52 53 2 325 201 | BADGE - D=45 | - | |
| 12 | 46 54 2 337 217 | INSTRUCTION NOTICE, PAYLOAD | - | |
71 60 2 337 206 | SIGN, MATERIAL IDENTIFIERAlternative for position 12 | - | ||
| 13 | 71 60 7 658 463 | SET: REP.KIT F LOCK CYLINDER | - | |
| 14 | 51 25 7 660 863 | SET OF LOCKS TOP CASE | - | |
| 15 | 71 60 7 687 095 | PAD TOPCASE LEFT - OBEN | - | |
| - | 07 14 9 126 185 | SCREW FOR PLASTIC - 4X10,5 | - | |
| 15 | 71 60 7 687 096 | PAD TOPCASE RIGHT - OBEN | - | |
| - | 07 14 9 126 185 | SCREW FOR PLASTIC - 4X10,5 | - | |
| 16 | 71 60 7 687 097 | PAD TOPCASE LEFT - UNTEN | - | |
71 60 7 687 098 | PAD TOPCASE RIGHT - UNTENAlternative for position 16 | - | ||
| - | 07 14 9 126 185 | SCREW FOR PLASTIC - 4X10,5 | - | |
| 17 | 01 29 7 688 356 | INSTALLATION INSTRUCTIONS, TOPCASE | - |
