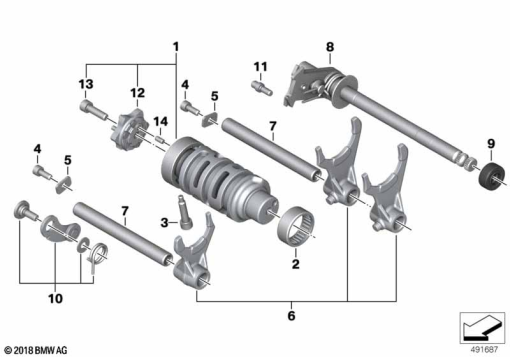

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 30 8 564 433 | SHIFTING ROLL | - | |
| 2 | 11 11 8 562 694 | NEEDLE BEARING | - | |
| 3 | 23 30 8 564 457 | INNER HEX BOLT - M6X1X29-12.9 | - | |
| 4 | 11 11 8 564 455 | INNER HEX BOLT - M5X12-8.8-ZNNIV | - | |
| 5 | 23 30 8 564 456 | BRACKET | - | |
| 6 | 23 30 8 566 443 | SET: SET GEARSHIFT FORKS | - | |
| 7 | 23 30 8 564 420 | SHIFTING RAIL | - | |
| 8 | 23 30 8 387 912 | SET: SET, SHIFT SHAFT (to 02/24) | - | |
23 30 7 108 351 | SET: KIT GEARSHIFT SHAFTAlternative for position 8 | - | ||
| 9 | 11 11 8 562 693 | SHAFT SEAL - 12X22X9 | - | |
| 10 | 23 30 8 387 653 | SET: SET RETAINING LEVER | - | |
| 11 | 11 11 8 562 688 | LOCKING PIN | - | |
| 12 | 23 30 8 564 437 | DETENT PLATE | - | |
| 13 | 11 26 8 406 632 | INNER HEX BOLT - M6X20-12.9 ZNS3 | - | |
| 14 | 23 30 8 387 651 | SET: SET CYLINDRICAL PINS | - |
