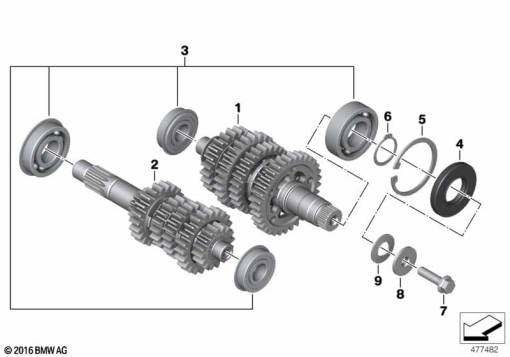

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 20 8 409 368 | OUTPUT SHAFT | - | |
23 20 9 829 392 | OUTPUT SHAFTAlternative for position 1 | - | ||
| 2 | 23 20 8 564 384 | DRIVE SHAFT | - | |
23 20 9 829 393 | DRIVE SHAFTAlternative for position 2 | - | ||
| 3 | 23 20 8 566 442 | SET: SET OF TRANSMISSION MOUNTS | - | |
| 4 | 23 20 8 564 412 | SHAFT SEAL - 25X52X7 | - | |
| 5 | 23 20 8 564 416 | LOCK RING - D=52 | - | |
| 6 | 23 20 8 564 411 | LOCK RING - D=25 | - | |
| 7 | 23 20 8 564 415 | HEXAGON SCREW WITH FLANGE - M8X30-10.9-ZNNI | - | |
| 8 | 23 20 8 564 418 | STEP PLATE - 28X8X5,5 | - | |
| 9 | 23 20 8 564 417 | DIAPHRAGM SPRING - 28X14.2X1.5 | - |
