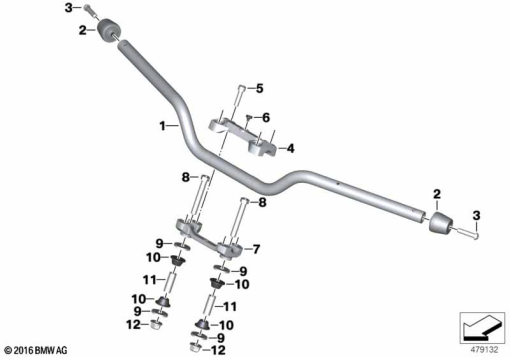

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 8 562 014 | HANDLEBAR | 1 | |
| 2 | 32 71 8 526 035 | HANDLEBAR VIBRATION ABSORBER | 1 | |
| 3 | 33 35 8 522 752 | OVAL HEAD SCREW - M8X35-8.8-ZNNIV | 1 | |
| 4 | 32 71 8 566 419 | CLAMPING SUPPORT, TOP | 1 | |
| 5 | 33 35 8 522 750 | FILLISTER-HEAD SCREW - M8X30-8.8 | 1 | |
| 6 | 31 42 7 700 545 | BADGE | 1 | |
| 7 | 32 71 8 554 120 | CLAMPING SUPPORT, BOTTOM | 1 | |
| 8 | 32 71 8 525 004 | FILLISTER-HEAD SCREW - M10X65-8.8 | 1 | |
| 9 | 32 71 8 560 052 | WASHER - 10,5X30X3,15 | 1 | |
| 10 | 32 71 7 725 734 | RUBBER MOUNTING | 1 | |
| 11 | 32 71 7 723 818 | SLEEVE | 1 | |
| 12 | 32 71 8 526 034 | HEX NUT - M10 | 1 |
