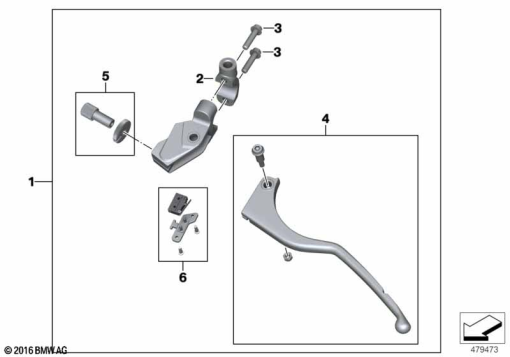

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 561 829 | CLUTCH CONTROL ASSEMBLY | - | |
| 2 | 32 72 8 561 830 | PIPE CLAMP LEFT | - | |
| 3 | 32 72 8 565 263 | FILLISTER-HEAD SCREW - M6X25-ZNNIV-SW | - | |
| 4 | 32 72 8 388 835 | SET: SET CLUTCH LEVERS | - | |
32 72 8 396 913 | SET: SET CLUTCH LEVERS ADJUSTABLEAlternative for position 4 | - | ||
| - | 77 15 9 443 011 | CLUTCH CONTROL ASSEMBLY | - | |
| 5 | 32 72 8 388 836 | SET: SET ADJUSTMENT WHEELS | - | |
| 6 | 61 32 8 357 192 | SET: CLUTCH SWITCH SET | - |
