G310GS 16 (K02) | Pedals
BRAKE PEDAL

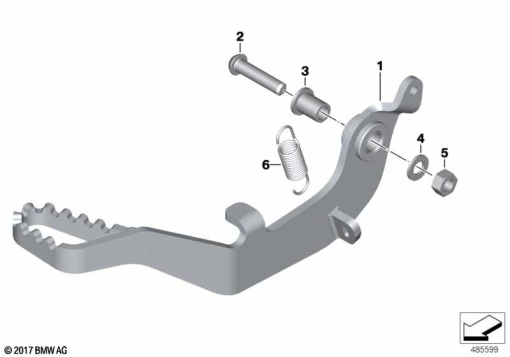

Diagram #35_0579 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 8 562 024 | BRAKE PEDAL | 1 | |
| 2 | 33 35 8 522 752 | OVAL HEAD SCREW - M8X35-8.8-ZNNIV | 1 | |
| 3 | 23 41 8 396 321 | BUSH | 1 | |
| 4 | 23 41 8 396 323 | WASHER - 8X22X2-ZNNIV-SI | 1 | |
| 5 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 6 | 35 21 8 393 786 | TENSION SPRING | 1 |
