G310GS 16 (K02) | Instruments Dash
INSTRUMENT CLUSTER

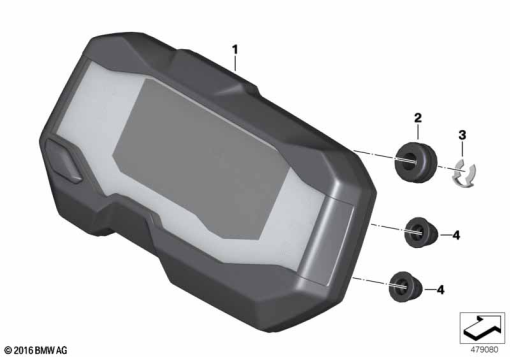

Diagram #62_0651 | 4 parts
100%
Parts List (4)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 7 924 443 | INSTRUMENT CLUSTER | 1 | |
| 2 | 46 63 1 233 200 | RUBBER GROMMET | 1 | |
| 3 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | 1 | |
| 4 | 46 63 7 691 016 | SNAP-LOCK COUPLING | 1 |
