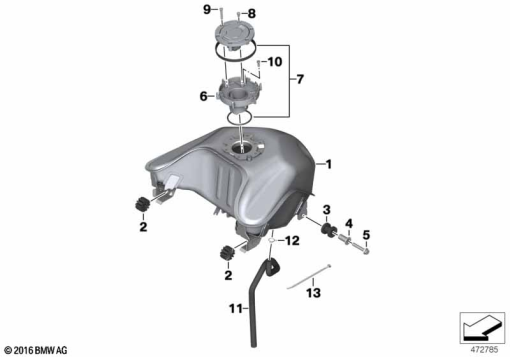

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 560 412 | FUEL TANK | - | |
| 2 | 46 63 8 558 018 | RUBBER MOUNTING | - | |
| 3 | 16 11 2 309 211 | RUBBER MOUNTING | - | |
| 4 | 16 11 8 558 290 | BUSH - L=30MM | - | |
| 5 | 16 11 8 558 294 | HEX BOLT - M8X45-U1-8.8 | - | |
| 6 | 16 11 8 565 539 | FILLER TUBE | - | |
| 7 | 16 11 8 566 990 | SET: SET OF SEALS | - | |
| 8 | 46 63 8 561 564 | FILLISTER-HEAD SCREW - M5X8-8.8-ZNNIV | - | |
| 9 | 46 63 8 561 566 | FILLISTER-HEAD SCREW - M5X30-8.8-ZNNIV | - | |
| 10 | 46 63 8 561 565 | FILLISTER-HEAD SCREW - M5X14-8.8-ZNNIV | - | |
| 11 | 16 11 8 562 187 | OUTLET HOSE - L=512MM | - | |
| 12 | 16 13 8 565 832 | HOSE CLAMP - D=12MM, B=8MM | - | |
| 13 | 61 13 8 383 722 | CABLE TIE - L=200MM/B=4,6MM | - |
