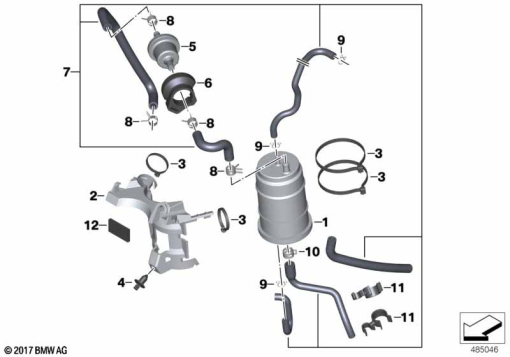

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 8 558 335 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 16 13 8 555 686 | BRACKET ACTIVATED CARBON CONTAINER | - | |
| 3 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 4 | 07 14 7 136 172 | EXPANDING RIVET (to 04/18) | - | |
| 5 | 13 90 1 465 030 | FUEL TANK BREATHER VALVE | - | |
| 6 | 13 90 1 734 443 | BRACKET VENTILATION VALVE | - | |
| 7 | 16 13 8 569 874 | SET: SET OF HOSES | - | |
| 8 | 16 13 8 565 760 | HOSE CLAMP - D=11MM, B=8MM | - | |
| 9 | 16 13 8 565 870 | PIPE CLIP - D=8MM | - | |
| 10 | 16 13 8 565 832 | HOSE CLAMP - D=12MM, B=8MM | - | |
| 11 | 16 13 8 564 461 | HOSE CLAMP, DOUBLE | - | |
| 12 | 16 13 8 396 996 | DAMPING STRIP - 35X19X4 | - |
