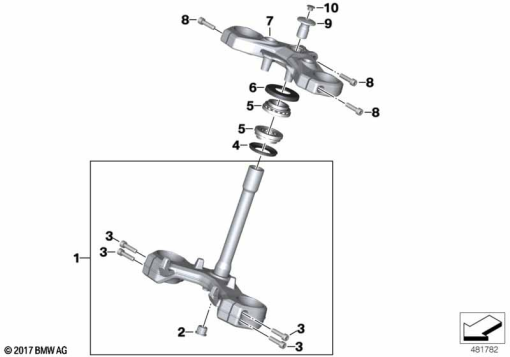

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 557 754 | LOWER FORK CROSS BRACE | - | |
| 2 | 46 51 8 546 628 | 0.01 | - | |
| 3 | 33 35 8 522 750 | FILLISTER-HEAD SCREW - M8X30-8.8 | - | |
| 4 | 31 42 8 554 116 | COVERING CAP | - | |
| 5 | 31 42 8 560 136 | BALL BEARING | - | |
| 6 | 31 42 8 554 117 | COVERING CAP | - | |
| 7 | 31 42 8 554 115 | UPPER FORK CROSS BRACE | - | |
| 8 | 33 35 8 522 750 | FILLISTER-HEAD SCREW - M8X30-8.8 | - | |
| 9 | 31 42 8 566 420 | ADJUSTING SCREW | - | |
| 10 | 31 42 8 388 532 | COVERING CAP | - |
