G310GS 16 (K02) | Frame, Fairing, Cases

UNDERRIDE PROTECTION

Diagram #46_1980 | 3 parts

100%

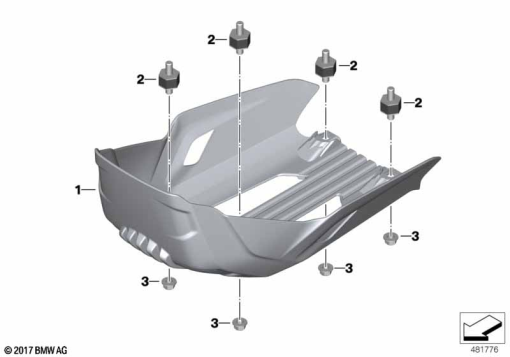

G310GS 16 (K02) UNDERRIDE PROTECTION exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 8 560 410
UNDERRIDE PROTECTION1
2
11 11 7 682 158
VIBRATION DAMPER - M81
3
07 11 9 905 977
HEX NUT WIHT FLANGE - M8-8-ZNNIV SI1
