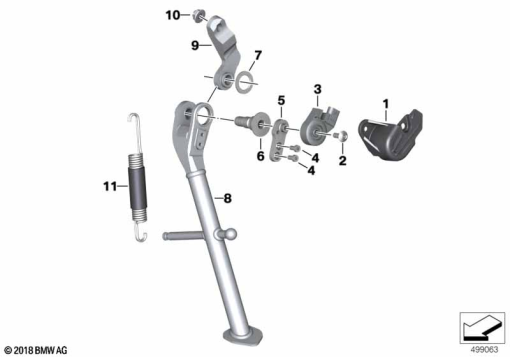

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 9 457 238 | COVER FOR SIDE-STAND SWITCH | - | |
| 2 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 3 | 61 31 8 388 642 | SWITCH, KICKSTAND | - | |
| 4 | 07 12 9 904 491 | ISA SCREW - M5X10 | - | |
| 5 | 46 53 9 457 241 | ADAPTER | - | |
| 6 | 46 53 9 457 226 | SIDE-SUPPORT SCREW | - | |
| 7 | 46 53 9 457 230 | WASHER | - | |
| 8 | 46 53 9 457 861 | SIDE STAND | - | |
| 9 | 46 53 9 457 243 | SUPPORTING BRACKET | - | |
| 10 | 31 30 6 798 572 | HEXAGON NUT WITH COLLAR - M8-10 ZNS3 | - | |
| 11 | 46 53 8 560 061 | SPRING WITH GROMMET | - |
