G310GS 16 (K02) | Frame, Fairing, Cases

FRONT WHEEL FENDER

Diagram #46_1991 | 3 parts

100%

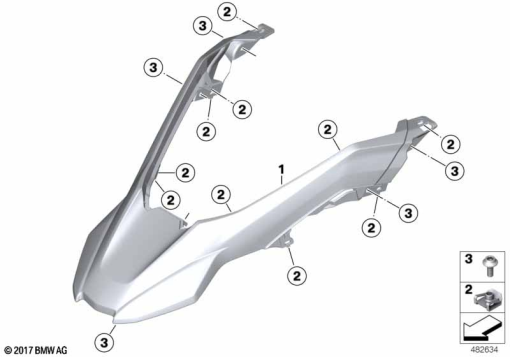

G310GS 16 (K02) FRONT WHEEL FENDER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 61 8 388 541
FRONT WHEEL COVER BLANK TOP - ROHTEIL /BLANK1
2
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
3
46 63 8 558 349
BODY SCREW WITH SHOULDER - M5X141
