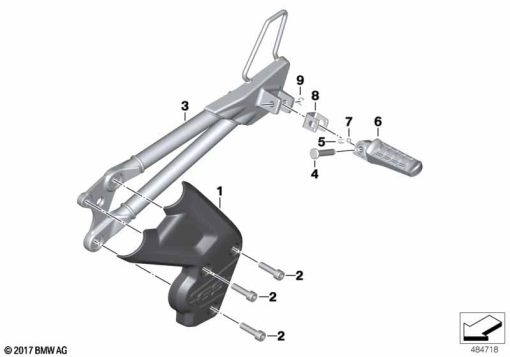

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 562 041 | COVERING LEFT | - | |
46 71 8 562 042 | COVERING RIGHTAlternative for position 1 | - | ||
| 2 | 33 35 8 522 750 | FILLISTER-HEAD SCREW - M8X30-8.8 | - | |
| 3 | 46 71 8 560 597 | LEFT REAR FOOTREST HOLDER | - | |
46 71 8 560 598 | RIGHT REAR FOOTREST HOLDERAlternative for position 3 | - | ||
| 4 | 46 71 8 388 470 | FOOTREST PIN | - | |
| 5 | 46 71 8 560 073 | SPRING | - | |
| 6 | 46 71 8 553 973 | FOOTREST, REAR LEFT | - | |
46 71 8 553 974 | FOOTREST, REAR RIGHTAlternative for position 6 | - | ||
| 7 | 46 71 8 354 281 | BALL | - | |
| 8 | 46 71 8 396 336 | DETENT PLATE FOR PASSENGER FOOTPEG | - | |
| 9 | 07 11 9 901 545 | SECURING CLIP | - | |
07 11 9 909 941 | CIRCLIPAlternative for position 9 | - | ||
07 11 9 909 941 | CIRCLIPAlternative for position 9 | - |
