G310GS 16 (K02) | Frame, Fairing, Cases

BRACKET, CONTROL UNIT

Diagram #46_1862 | 4 parts

100%

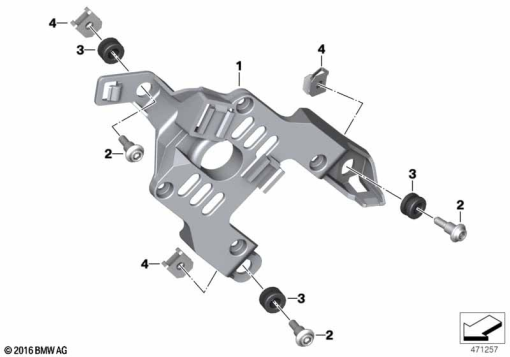

G310GS 16 (K02) BRACKET, CONTROL UNIT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 8 556 899
BRACKET, CONTROL UNIT-
2
46 63 8 558 356
BODY SCREW WITH SHOULDER - M5-
3
46 63 8 534 532
RUBBER GROMMET-
4
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M5-
