G310GS 16 (K02) | Exhaust System

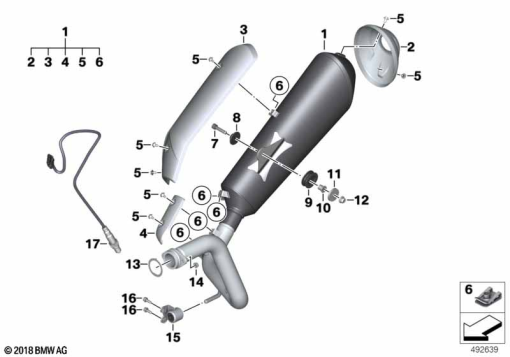

EXHAUST SYSTEM PARTS WITH MOUNTS
Diagram #18_1305 | 17 parts
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 8 371 458 | MUFFLER SYSTEM | - | |
| 2 | 18 51 8 558 450 | CAP FOR REAR MUFFLER, REAR | - | |
| 3 | 18 51 8 562 357 | TRIM FOR END MUFFLER | - | |
| 4 | 18 51 8 559 143 | COVER, MANIFOLD | - | |
| 5 | 46 63 8 558 445 | BODY SCREW WITHOUT SHOULDER - M5X10-A2-80 | - | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 7 | 46 63 8 561 560 | FILLISTER-HEAD SCREW - M8X35-8.8-ZNNIV | - | |
| 8 | 18 21 7 671 617 | REINFORCEMENT | - | |
| 9 | 18 21 7 677 791 | GROMMET | - | |
| 10 | 18 21 7 672 806 | SPACER SLEEVE | - | |
| 11 | 18 51 8 564 888 | WASHER - 34X3X8,2 | - | |
| 12 | 07 11 9 905 977 | HEX NUT WIHT FLANGE - M8-8-ZNNIV SI | - | |
| 13 | 18 51 8 569 856 | GASKET FOR EXHAUST MANIFOLD | - | |
| 14 | 18 21 7 676 551 | SECURING NUT - M7 | - | |
| 15 | 18 51 8 373 655 | BRACKET, EXHAUST MANIFOLD | - | |
| 16 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | - | |
| 17 | 11 78 8 561 680 | OXYGEN SENSOR | - |
