G310GS 16 (K02) | Engine

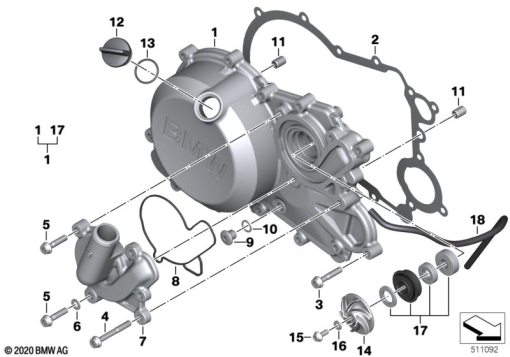

ENGINE HOUSING COVER, RIGHT
Diagram #11_6628 | 21 parts | 1 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 9 467 448 | CLUTCH COVER | 1 | |
| 2 | 11 13 8 562 759 | GASKET, CLUTCH COVER | 1 | |
| 3 | 11 13 8 562 751 | INNER HEX BOLT - M6X30-8.8-ZNNIV | 1 | |
| 4 | 11 11 8 562 770 | INNER HEX BOLT - M6X45-8.8-ZNNIV | 1 | |
| 5 | 11 11 8 562 772 | HEXAGON SOCKET SCREW WITH FLANGE - M6X25-8.8-ZNNIV | 1 | |
| 6 | 11 11 8 562 771 | GASKET RING - 6X12X1-AL | 1 | |
| 7 | 11 13 8 562 769 | COVER FOR COOLANT PUMP - SILVER | 1 | |
| 8 | 11 13 8 562 773 | PREFORMED SEAL | 1 | |
| 9 | 11 12 8 562 726 | SCREW PLUG, INNER HEXAGON - M10X1X9-ZNNIV | 1 | |
| 10 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 11 | 11 11 8 387 652 | SET: SET OF FITTING SLEEVES | 1 | |
| 12 | 11 43 8 562 877 | SCREW PLUG - M24X2 | 1 | |
| 13 | 11 43 8 562 876 | O-RING - 21,5X2 | 1 | |
| 14 | 11 51 8 562 892 | REFRIGERANT PUMP WHEEL (to 10/19) | 1 | |
| 14 | 11 51 9 457 106 | REFRIGERANT PUMP WHEEL | 1 | |
| 15 | 11 12 8 562 723 | INNER HEX BOLT - M5X12-8.8-ZNNIV | 1 | |
| 16 | 11 51 8 568 720 | WASHER-GASKET - 5X10X1.5 | 1 | |
| 17 | 11 14 8 566 412 | SET: SET SEALS / BEARINGS COOLANT PUMP | 1 | |
| 1 | 11 51 8 568 720 | WASHER-GASKET - 5X10X1.5 | 1 | |
| 1 | 11 12 8 562 723 | INNER HEX BOLT - M5X12-8.8-ZNNIV | 1 | |
| 18 | 11 74 7 797 115 | HOSE RUNNING METER - 4,5X9MM (meter) | 1 |
