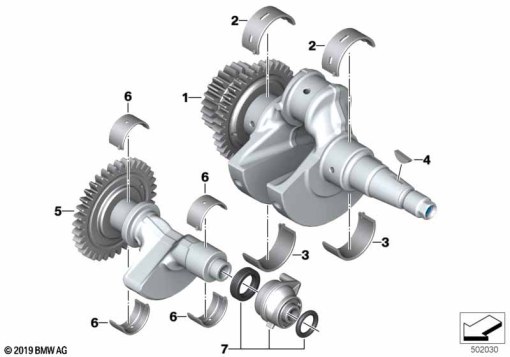

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 8 562 774 | CRANKSHAFT (from 08/18) | - | |
11 21 9 829 397 | CRANKSHAFTAlternative for position 1 | - | ||
| 2 | 11 21 8 393 194 | MAIN BEARING SHELL WITH GROOVE/YELLOW (from 08/18) | - | |
11 21 8 394 228 | MAIN BEARING SHELL WITH GROOVE / BROWN (from 08/18)Alternative for position 2 | - | ||
| 3 | 11 21 8 393 193 | MAIN BEARING SHELL / YELLOW (from 08/18) | - | |
11 21 8 394 227 | MAIN BEARING SHELL / BROWN (from 08/18)Alternative for position 3 | - | ||
| 4 | 12 31 8 562 803 | WOODRUFF KEY - 4X5 (from 08/18) | - | |
| 5 | 11 27 8 562 980 | COMPENSATING SHAFT (from 08/18) | - | |
11 27 1 542 239 | COMPENSATING SHAFTAlternative for position 5 | - | ||
| 6 | 11 27 9 480 372 | BEARING SHELL YELLOW (from 08/18) | - | |
11 27 9 480 373 | BEARING SHELL GREEN (from 08/18)Alternative for position 6 | - | ||
| 7 | 11 27 9 457 541 | SET: SET ADAPTER ENGINE VENTILATION (from 08/18) | - |
