G310GS 16 (K02) | Engine Electrics

STARTER

Diagram #12_2088 | 4 parts

100%

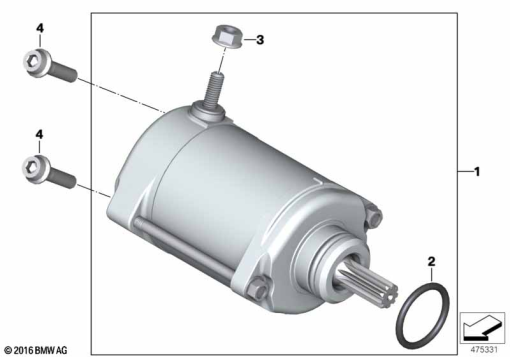

G310GS 16 (K02) STARTER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
12 41 8 559 627
STARTER1
2
12 41 8 560 208
O-RING1
3
07 12 9 905 542
HEX NUT WITH PLATE - AM6-8-ZNNIV SI1
4
11 11 8 562 772
HEXAGON SOCKET SCREW WITH FLANGE - M6X25-8.8-ZNNIV1
