G310GS 16 (K02) | Brakes
ROTATIONAL-SPEED SENSOR, REAR

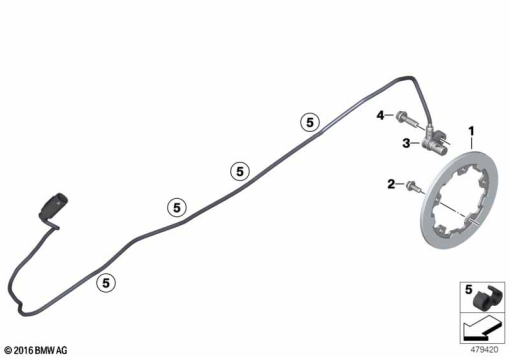

Diagram #34_2463 | 7 parts | 3 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 8 553 968 | SENSOR RING | 1 | |
| 2 | 34 52 8 522 740 | HEX BOLT - M5X12 | 1 | |
| 3 | 34525A781C5 | NEW VERSION wheelspeed sensor | 1 | |
| 3 | 34 52 9 443 105 | WHEELSPEED SENSOR (to 04/23) | 1 | |
| 3 | 34525A781C5 | WHEEL SPEED SENSOR | 1 | |
| 4 | 11 11 8 557 331 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 5 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 |
